4’’ Brandt Type Desilter Unit
& Replacement Spares
Brandt Equivalent Desilters
RRP make 4’’ Brandt Desilters units are designed to efficiently remove finer drilled solids, sand & silt particle sized solids (10-60 microns) and built on heavy duty oil field type skid. RRP desilters units are available in 8-, 12-, 16, 20, 22, 24 cone models (balanced cone design), in capacity ranging from 480 GPM to 1440GPM at 75 feet of head.

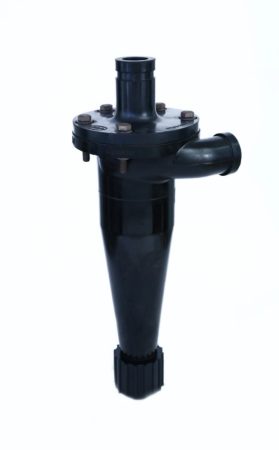

RRP Desilter incorporates 4” cones, which are manufactured using special grade of cast urethane highly resistant to heat, abrasion, chemicals, wear, tear, oil and water. The feed entry angle is designed in such a way to generate greater centrifugal force to ensure effective removal of drilled solids, sands and silts from the drilling fluid. The cone assemblies are fitted with unique adjustable bushing at the apex to control the underflow density and spray discharge of the drilled solids.
Brandt Equivalent Desilters
- RRP Desilter’s are suitable for application in minimum and maximum ambient temperature range from 6 to 55 degrees centigrade.
- Our desilter’s are suitable for drilling fluids with mud specific gravity from 0.9 to 2.6 and API funnel viscosity 35-100 seconds/quart
- Suitable for drilling mud operating temperature up to 90 degree centigrade
- The equipment removes sand particle sizes up to size 40 microns from the drilling fluid.
- Capacity of Desilter’s : 480 GPM to 1440 GPM (each cone capacity 60 GPM)
- Pressure Guage type: Bourdon type
- Inlet & Over flow discharge headers pipe connection: 8”
- No. of Hydrocyclones: 8/12/16/20/22/24 cones.
- Size of cones (diameter): 10.16 cm/ 4”
- Victaulic couplings : 8” with welded sub ends
- Skid type: Heavy duty oilfield type skid
- Specified capacity of the desilter shall be at 2250 cm/75 Head

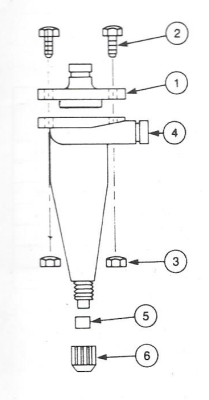

Replacement Parts For 4’’ Brandt Equivalent Desilter Cones
Specification For 4’’ Brandt Desilter Cones:
Note : The brand names and OEM part number mentioned are for identification purpose only.
BRANDT PREFIX CODE
ASSEMBLY P/N
4 Cone Unit – P 355- XXX
6 Cone Unit – P 419- XXX
8 Cone Unit – P 351- XXX
10 Cone Unit – P 413 – XXX
